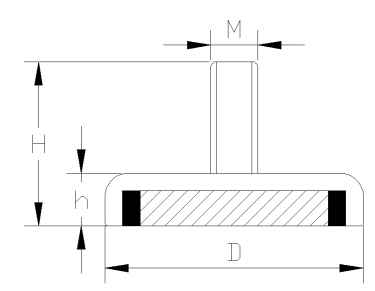

型號(hào) Model |
M (mm) |
H (mm) |
h (mm) |
重量 Weight (g) |
吸力 pull force (kg) |
包裝 Packing (Per Carton) |
| PMYP-C6 | 3 | 11 | 4.5 | 1.2 | 1 |
8000PCS (35*27*14CM) |
| PMYP-C8 | 3 | 11 | 4.5 | 2.1 | 1.5 |
6000PCS (35*27*14CM) |
| PMYP-C10 | 4 | 12 | 4.5 | 2.8 | 2 |
3000PCS (35*27*14CM) |
| PMYP-C12 | 5 | 12 | 4.5 | 3.5 | 3 |
2680PCS (35*27*14CM) |
| PMYP-EC16-1 | 4 | 14.5 | 5 | 7 | 6 |
1600PCS (35*27*14CM) |
| PMYP-EC20-1 | 4 | 17 | 7 | 14 | 10 |
700PCS (35*27*14CM) |
| PMYP-EC25-2 | 5 | 17 | 8 | 25 | 22 |
500PCS (35*27*14CM) |
| PMYP-EC32-2 | 6 | 18 | 8 | 40 | 34 |
288PCS (35*27*14CM) |
| PMYP-EC36-2 | 8 | 22 | 8 | 50 | 42 |
240PCS (35*27*14CM) |
| PMYP-EC42-1 | 8 | 23 | 9 | 80 | 68 |
112PCS (35*27*14CM) |
| PMYP-EC48-1 | 8 | 24 | 11.5 | 140 | 80 |
96PCS (35*27*14CM) |
| PMYP-EC60-2 | 10 | 30 | 15 | 260 | 112 |
27PCS (35*27*14CM) |
| PMYP-EC75-1 | 10 | 32 | 18 | 475 | 172 |
18PCS (35*27*14CM) |
