型號(hào) Model |

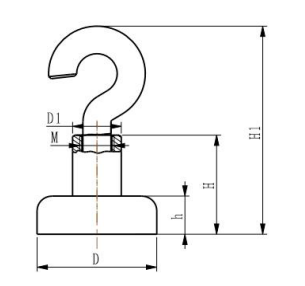

D | D1 | h | H | H1 | M |
重量 Weight (g) |
吸力 pull force (kg) |
包裝 Packing (Per Carton) (35*27*14CM) |
| (mm) | |||||||||
| ED8 | 8 | 4.5 | 4.5 | 11 | 32.5 | 3 | 3.3 | 1 | 1500PCS |
| ED10 | 10 | 6 | 5 | 12.5 | 32.5 | 3 | 4.6 | 1.5 | 1260PCS |
| ED12 | 12 | 6 | 5 | 12.5 | 33.5 | 3 | 5.3 | 3 | 1000PCS |
| ED16-1 | 16 | 6 | 5 | 13.5 | 34.5 | 4 | 9.8 | 6 | 500PCS |
| ED16-3 | 16 | 6 | 5 | 13.5 | 34.5 | 4 | 9.8 | 9 | |
| ED20-1 | 20 | 8 | 7 | 17 | 36 | 4 | 18.7 | 10 | 320PCS |
| ED20-2 | 20 | 8 | 7 | 17 | 36 | 4 | 18.7 | 12 | |
| ED20-3 | 20 | 8 | 7 | 17 | 36 | 4 | 18.7 | 15 | |
| ED25-1 | 25 | 8 | 8 | 17 | 38 | 5 | 31.6 | 18 | 250PCS |
| ED25-2 | 25 | 8 | 8 | 17 | 38 | 5 | 31.6 | 22 | |
| ED25-3 | 25 | 8 | 8 | 17 | 38 | 5 | 31.6 | 24 | |
| ED32-1 | 32 | 10 | 8 | 18 | 50 | 6 | 48 | 29 | 135PCS |
| ED32-2 | 32 | 10 | 8 | 18 | 50 | 6 | 48 | 34 | |
| ED32-3 | 32 | 10 | 8 | 18 | 50 | 6 | 48 | 37 | |
| ED36-1 | 36 | 10 | 8 | 18 | 50 | 6 | 62 | 37 | 120PCS |
| ED36-2 | 36 | 10 | 8 | 18 | 50 | 6 | 62 | 42 | |
| ED36-3 | 36 | 10 | 8 | 18 | 50 | 6 | 62 | 50 | |
| ED42-1 | 42 | 10 | 9 | 20 | 61 | 6 | 88 | 50 | 80PCS |
| ED42-3 | 42 | 10 | 9 | 20 | 61 | 6 | 88 | 72 | |
| ED48-1 | 48 | 12 | 11.5 | 24 | 66 | 8 | 165 | 75 | 36PCS |
| ED48-3 | 48 | 12 | 11.5 | 24 | 66 | 8 | 165 | 90 | |
| ED60-2 | 60 | 12 | 15 | 30 | 84 | 8 | 285 | 112 | 14PCS |
| ED60-3 | 60 | 12 | 15 | 30 | 84 | 8 | 285 | 130 | |
| ED75-1 | 75 | 14 | 18 | 32 | 85.2 | 10 | 530 | 150 | 12PCS |
| ED75-3 | 75 | 14 | 18 | 32 | 85.2 | 10 | 530 | 240 | |
